Optional Building Features

Roof, Wall, and Specialty Panels

Optional Roof Panels – Standing Seam

A standing seam metal roof system is one of the most durable and weathertight roof systems available to the industry. Searcy Buildings Systems offers a wide variety of standing seam panels. These panels are a great choice for residential, commercial and industrial building applications. So, when your design requires a metal roofing system that is both aesthetically pleasing and structurally sound, ask your SBS building expert to help find the perfect standing seam panel for your project.

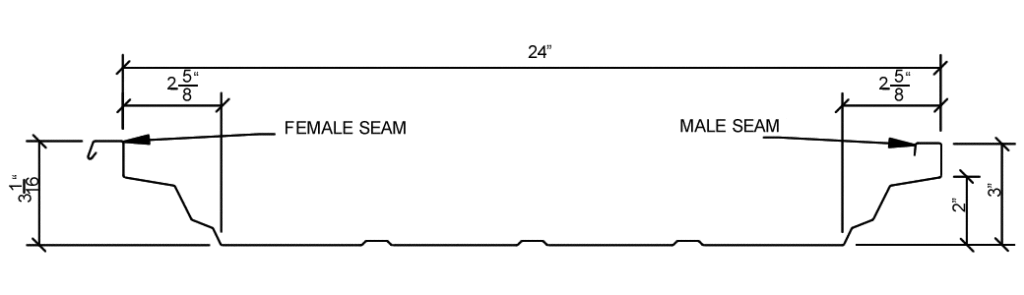

TS-324 (Trapezoidal System)

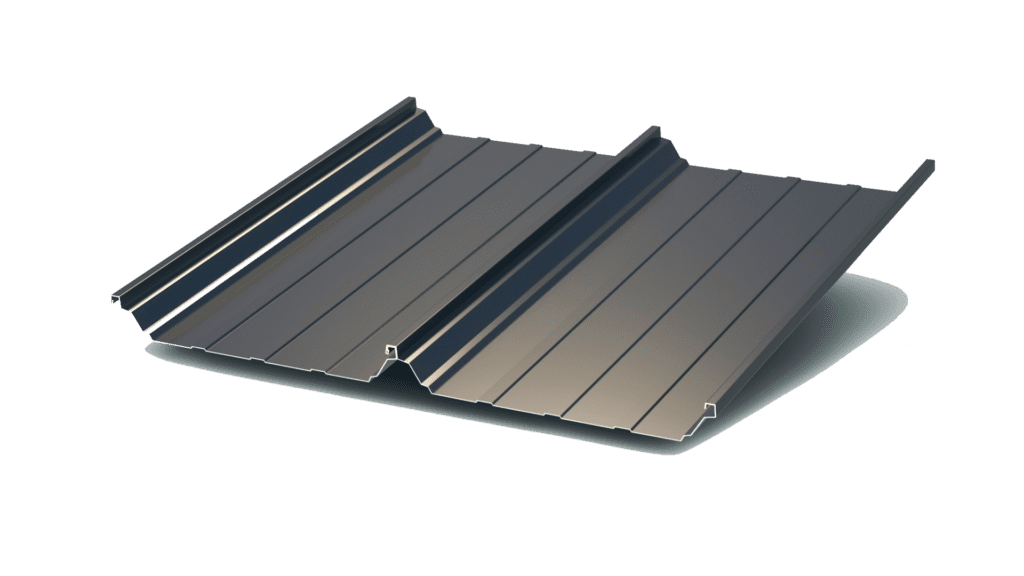

The TS-324 (Trapezoidal System) standing seam panel uses breakthrough technology that addresses the most current wind uplift requirements. This patented design is the reason why this metal roof is the best in its class for performance, reliability, and cost efficiency – it is one of our most commonly utilized standing seam panels. Designed to last, its innovative clips add stability while allowing for thermal expansion and contraction along with a patented seaming system that is designed to handle even the most stringent uplift requirements.

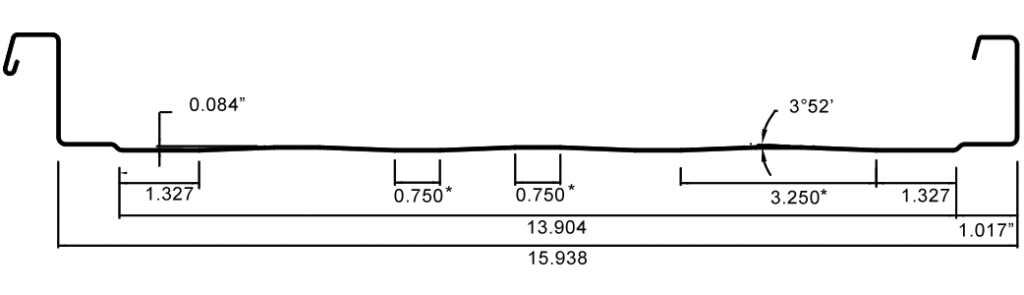

VS-216 (Vertical System)

The VS-216 (Vertical System) standing seam panel is one of our most commonly requested architectural standing seam panels. Utilizing the same patented technology as the TS-324, it provides superior wind and weather protection under all roof loading conditions. The seam geometry and seaming methods virtually assure that your installed roof will perform as it was designed at minimum cost.

BattenLok®

BattenLok® is a mechanically field-seamed, high strength structural standing seam roof system. The BattenLok® HS panels have a 2″ tall vertical seam and are available in both 12-inch and 16-inch widths. BattenLok® HS can be installed directly over purlins or bar joists and is capable of transitioning from roof to fascia. BattenLok® HS does not require a solid substructure for support.

SuperLok®

SuperLok® – is a mechanically field-seamed, vertical leg standing seam roof system that combines a 2″ tall slim rib with exceptional uplift resistance. It is available in both 12-inch and 16-inch widths. SuperLok® has been designed to withstand the most rigorous weather conditions. SuperLok® can be installed directly over purlins or bar joists. SuperLok® does not require a solid substructure for support.

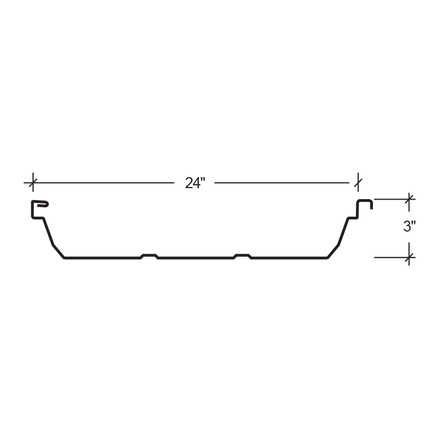

Double-Lok®

Double-Lok® is a mechanically field-seamed, trapezoidal leg standing seam roof system. Double-Lok® panels are available in 12-inch, 18-inch and 24-inch widths. Double-Lok® requires a minimum slope of ¼:12. Double-Lok® panels are ideal for industrial, commercial and architectural applications.

Ultra-Dek®

Ultra-Dek® is a snap-together, trapezoidal leg standing seam roof system. Ultra-Dek® panels are available in 12-inch, 18-inch and 24-inch widths. Ultra-Dek® requires a minimum slope of ¼:12 and is ideal for industrial, commercial and architectural applications. Ultra-Dek® can be erected on various types of construction.

Optional Wall Panels

Reverse R-Panel

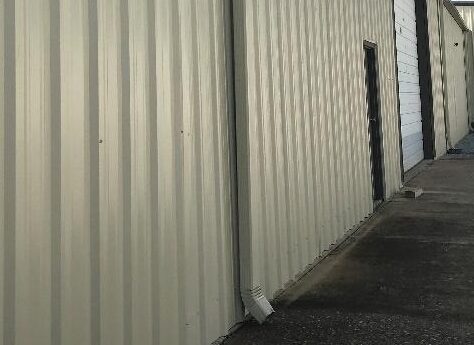

The Reverse R-Panel is a reverse-rolled version of our popular PBR panel profile. It is a semi-concealed fastener panel that is 36” wide with inverted major ribs at 12” centers and two inverted minor ribs between major ribs. The resulting decorative shadow line allows your attention to focus on the beauty of the wall. The rigid surface helps compress thicker insulation without unsightly bulges at the girt as well as provides a greater surface area in the event you want to brick directly over the wall panel.

Architectural (A-panel)

Architectural (A-panel) panels can be used for wall applications. Aside from its aesthetically pleasing nature, the inverted ribs of the PBA panel provide additional space for heavier insulation thicknesses and allows for a more inconspicuous location for the exposed fasteners than the PBR panel.

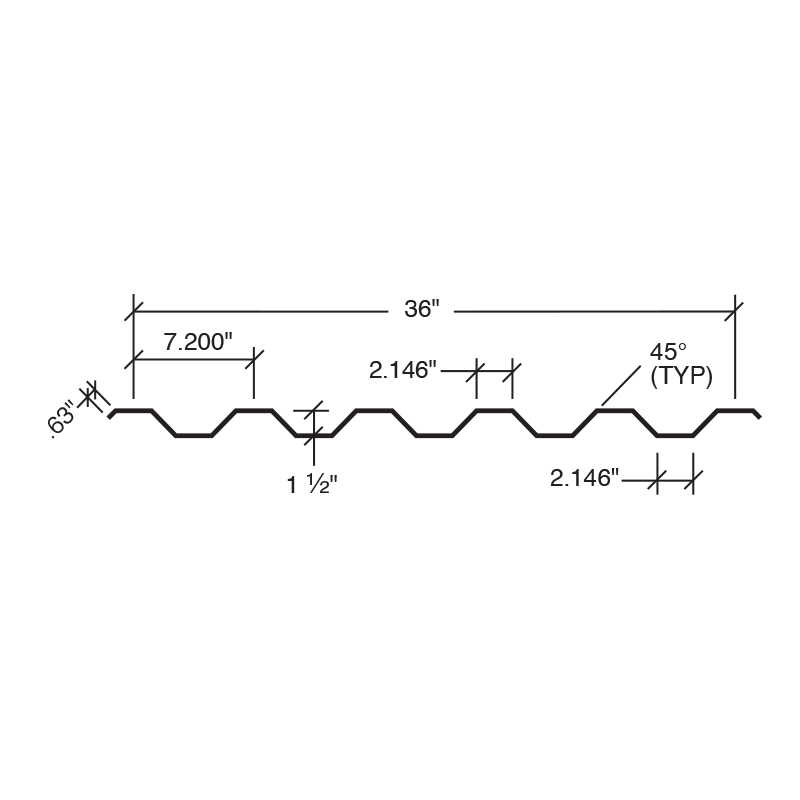

7.2 paneL

The 7.2 panel is one of the most versatile and economical products for commercial, industrial, and architectural applications. With a strong industrial aesthetic and its sturdy symmetrical rib, the 7.2 Panel offers excellent spanning and cantilever capabilities, and can be installed vertically or horizontally.

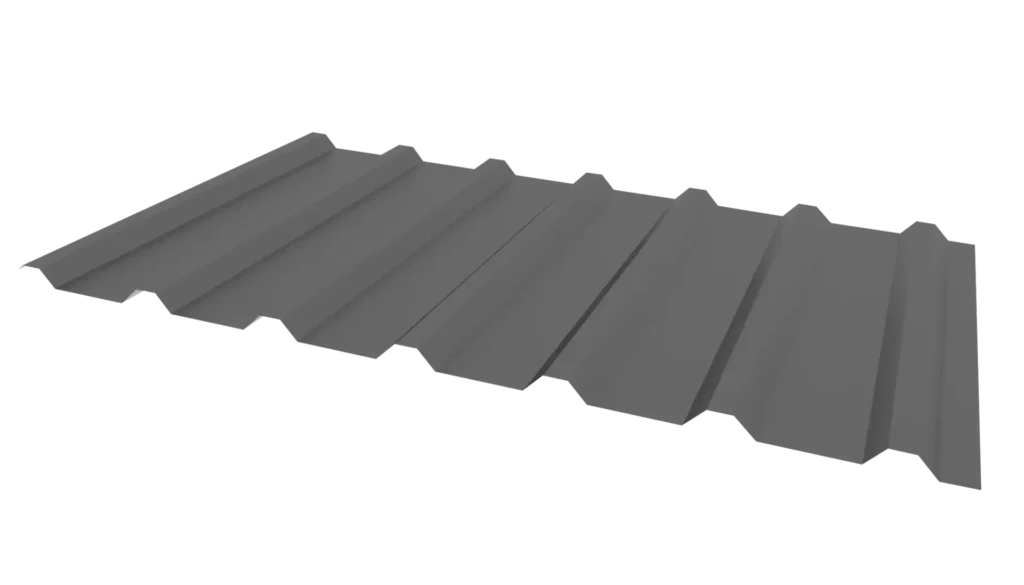

PBU panel

The PBU panel is an exposed fastener system that can be used for roof, wall and liner panel applications and can be installed directly over purlins or joists. PBU offers the versatility of being used in both vertical and horizontal applications to give designers a contemporary appearance for their building project. PBU is recommended for 1:12 or greater roof slopes.

Optional Specialty Panels

Searcy Building Systems offers a wide variety of specialty panels. Please ask your building consultant if you are interested in any of the following panel types: concealed fastener panels, insulated metal panels, artisan soffit panels, or textured panels.

Optional Structural Features

There are several structural design features that can add some visual interest as well as functionality to your building.

Overhangs, canopies, facades/mansards, parapet walls and wainscoting are five of the most commonly utilized ways in which to tailor your metal building to fit your vision. Ask your Searcy Building Systems building consultant which of these would work best for your needs.

Overhang

The most commonly utilized structural feature is an overhang. Overhangs are used to create a more residential or customized look, they can be added to the eave sides (sidewalls), rake ends (endwalls), or around the total perimeter. They are typically 12”, 18” or 36” in depth, but can be up to 10’ out. They can also be designed with or without metal soffit panels to cover the underside. Overhangs are great for directing water out and away from the building as well as providing shade.

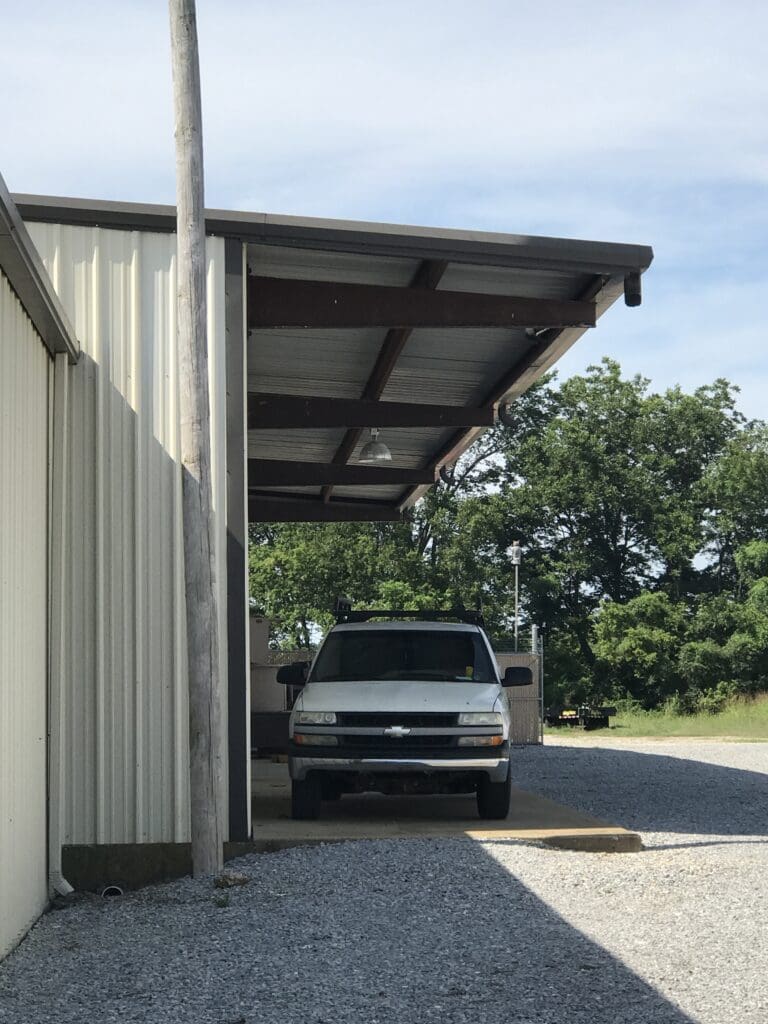

Canopies

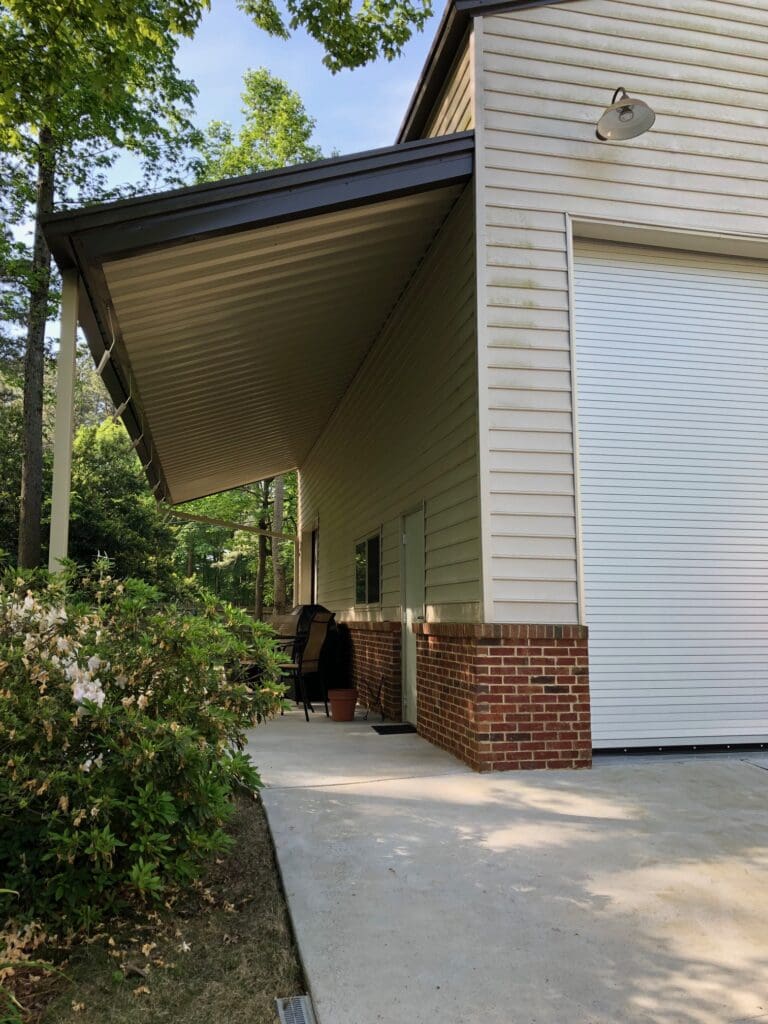

Similar to overhangs are canopies, otherwise known as rake or eave extensions. They can be added to any wall, and can be designed as continuous roof canopies or below eave canopies. Canopies can measure 2’ to 10’ out, and can be designed with or without soffit. Canopies are a great source of shelter and shade for vehicles, farm equipment, and are often used as covered porches.

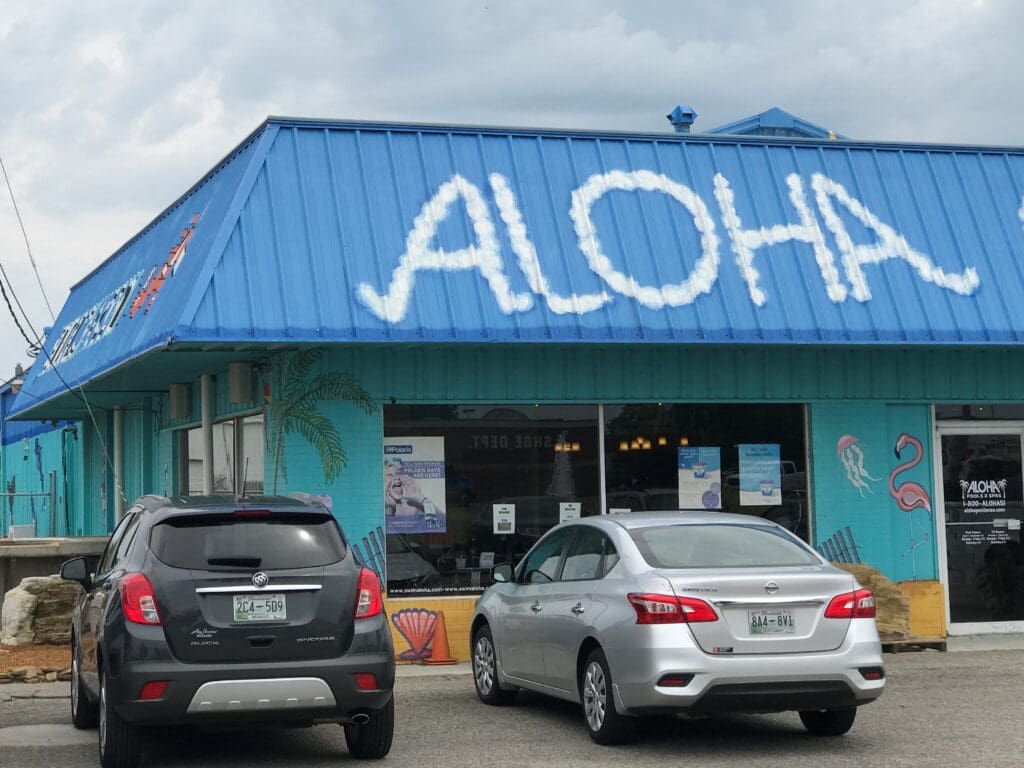

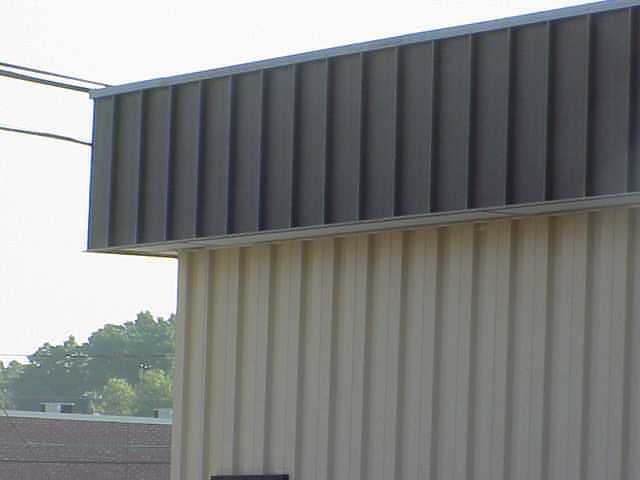

Facades/Mansards

Facades or Mansards are typically used for retail buildings. They provide a superb area for signage and also shelter entry points and loading areas from rain or sun. Mansards can project out up to 6’ and project up between 2’ and 6’ tall.

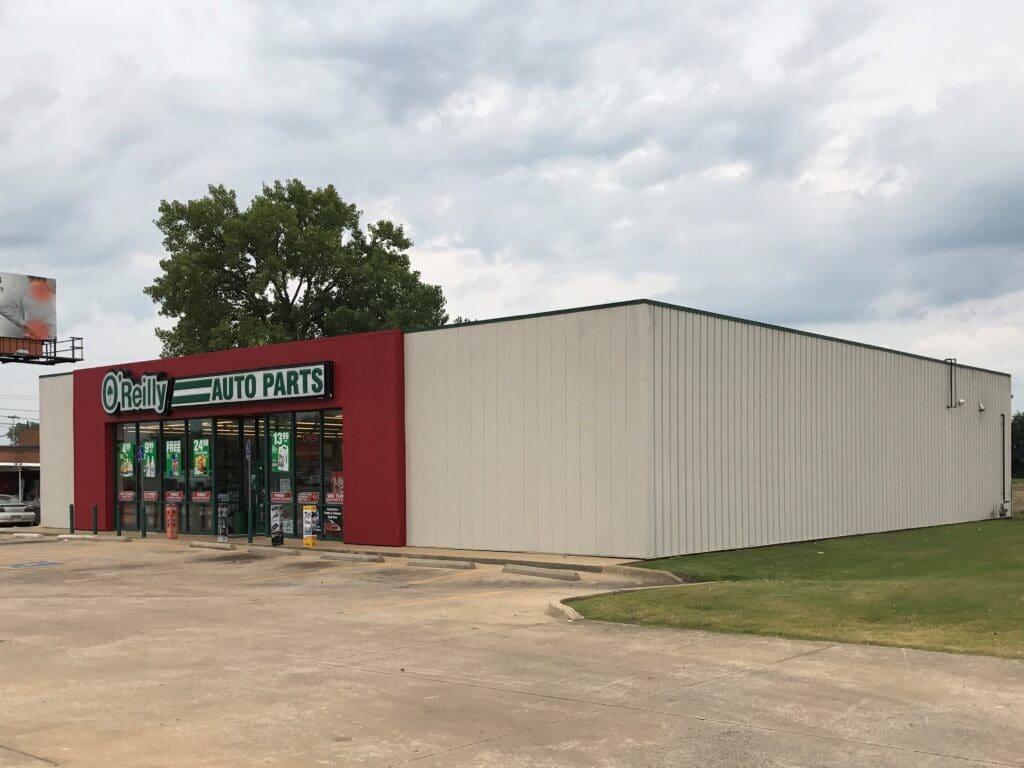

Parapet Walls

Parapet walls differ from façades/mansards in that they have no projection. Parapet walls can be added to one or more walls. Parapet walls are wall panels below the roof line that extend above the roof line to a given elevation. Typically, they are added at the high eave and both endwalls of a single-slope building to hide the roof slope.

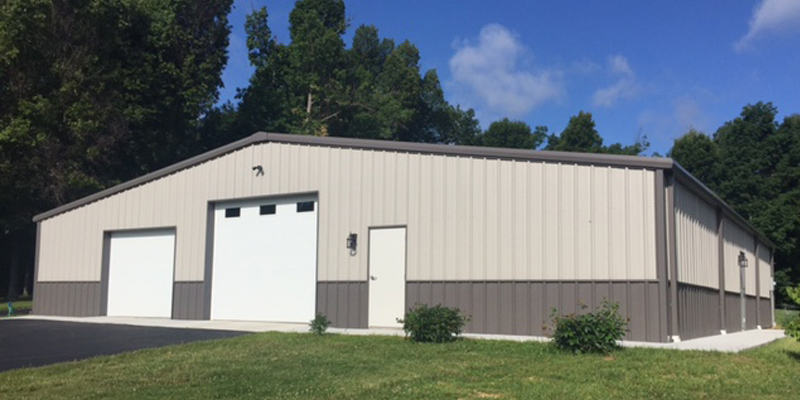

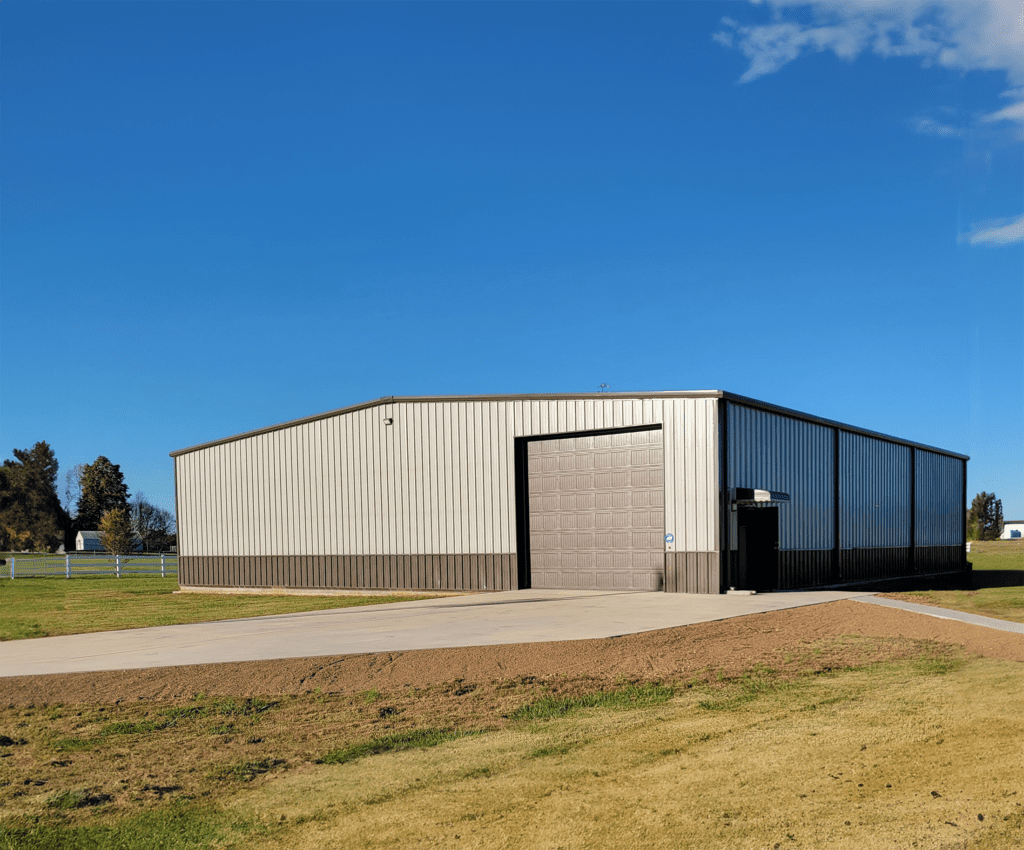

Wainscotting

Wainscot is a great way to customize the look of your building. It is characterized by color change in the wall sheets at a certain elevation above finished floor. It is typically used for more decorative purposes. On buildings with taller walls this color change helps to break up a large monotone area making it more visually appealing.

Optional
Metal Building Accessories

We can provide any of the below accessories at a competitive price.

Ask your experienced metal building consultant how the following accessories might benefit your project.

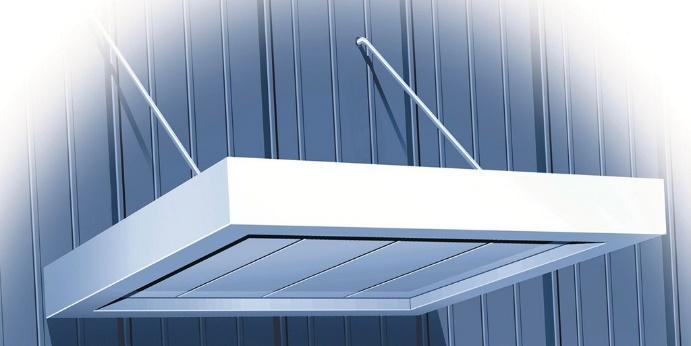

Door Canopies

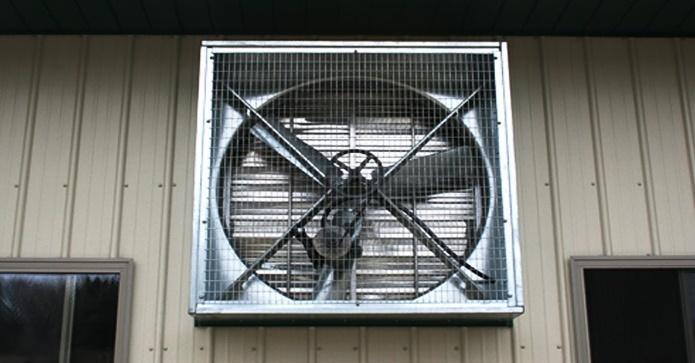

Exhaust Fans

Wall exhaust fans come in either 36” or 48” diameters. With up to 1-1/2 hp motors. They feature a heavy gauge Galvanized steel frame and have an extruded aluminum shutter with extruded aluminum blades that open and close when the fan is switched on.

Framed Openings

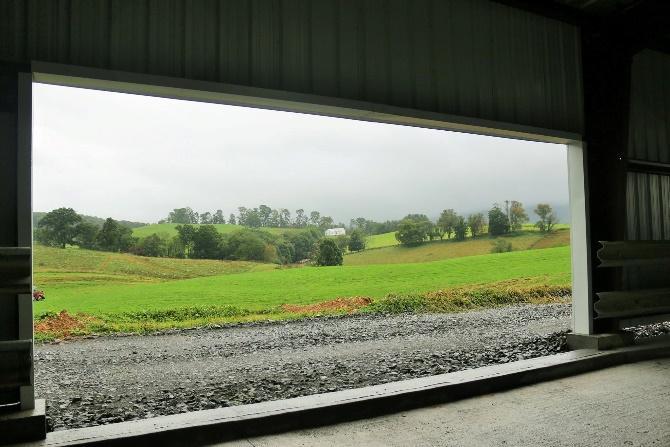

Searcy Building Systems will provide framed openings for large doors, storefront glass doors and windows, or specialty windows.

Gutter System

Gutters are an essential component for diverting rainwater and snow melt from your roof and directing it away from you concrete slab.

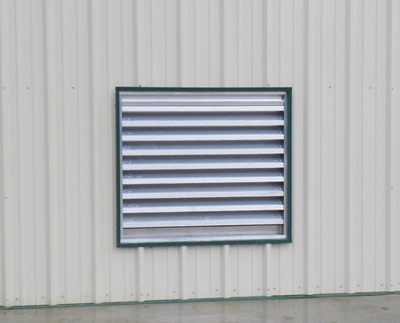

Louvers

Used to generate cross flow for larger buildings, louvers often provide the only ventilation in smaller buildings. SBS offers fixed 3’x3′ and 4’x4′ or adjustable 3’x3 ‘and 4’x4’ Galvalume® louvers in Polar White or mill finish, each with a bird screen.

Ridge Vents

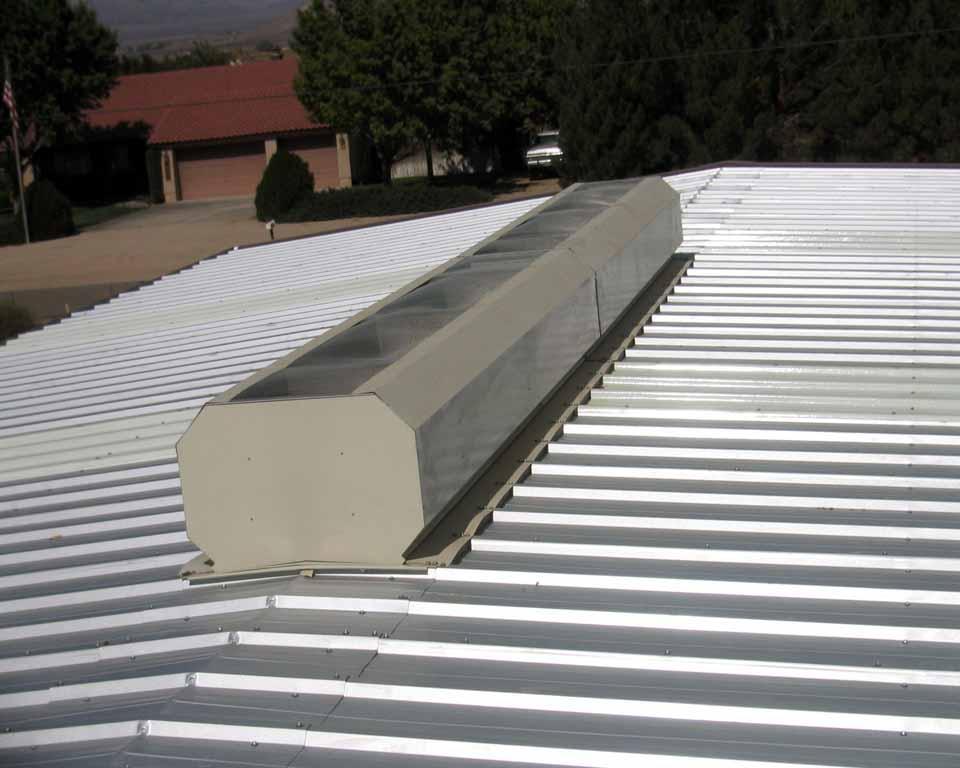

Our metal building ridge vents can be ordered as continuous or single units. Exterior parts are 26 gauge painted or Galvalume. Each vent is opened by a pull chain that extends approximately 12” below the roof and also come with bird screens.

Skylights

SBS skylights and wall lights are manufactured of 100% acrylic sheets and are reinforced with long-strand fiberglass. A hardy gel coats both sides of every panel. Designed to produce diffused natural light— rather than using harsh direct sunlight— these heavy duty, opaque light transmitting panels meet or exceed all industry standards.

Slimline Fixed Windows

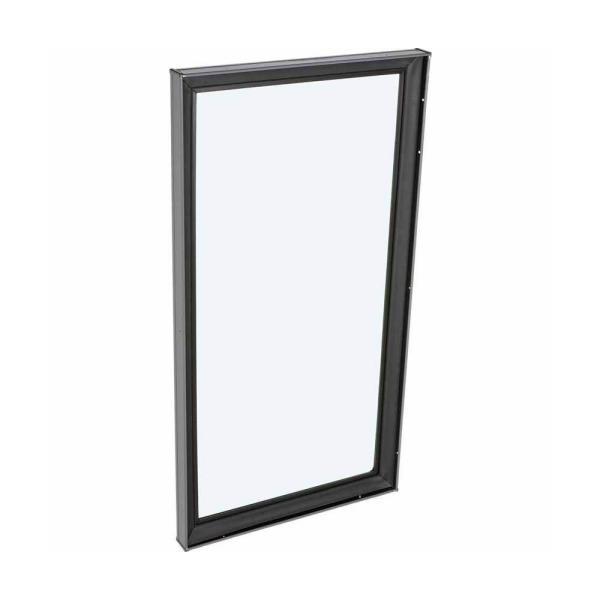

Slimline Fixed Windows: These are typically used in steel office buildings for lighting and viewing of outside areas, and do not open. They are self-framing and do not require sub-framing unless requested. Typical sizes are 2’X7’ (2070) and 2’X6’ (2060).

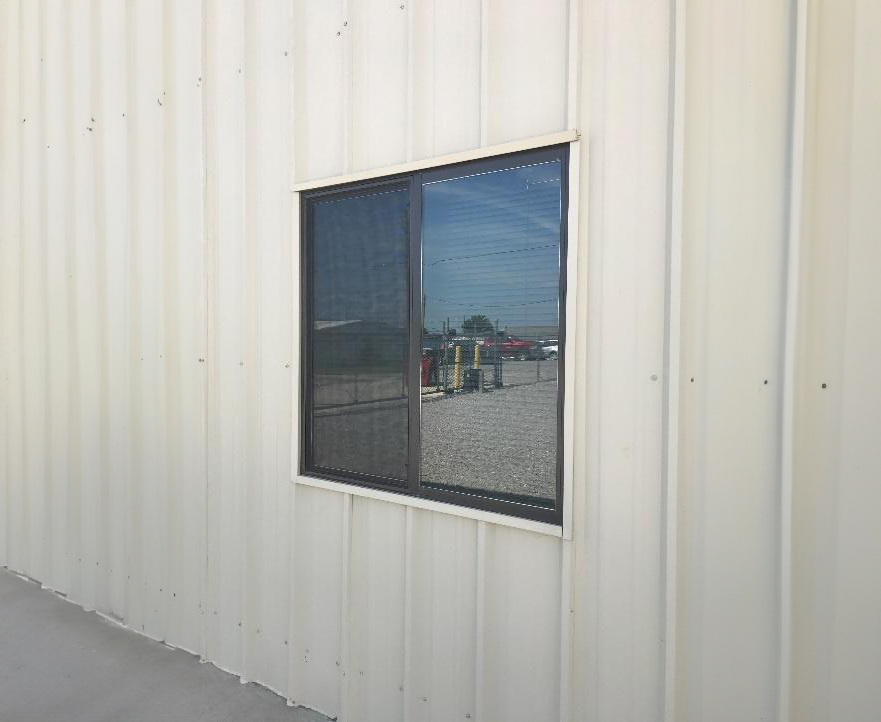

Thermal Windows

Our insulated windows are offered in both horizontal slide or single hung models. The thermal break frame and insulated glass helps to keep interior temperatures even regardless of outside temperature. This thermal window is self-flashing/self-framing for installation convenience, but can be coupled with a steel subframe for added strength. They typically come in sizes of 3’X3’, 4’X3’ and 6’X3’, although other sizes are available upon request.

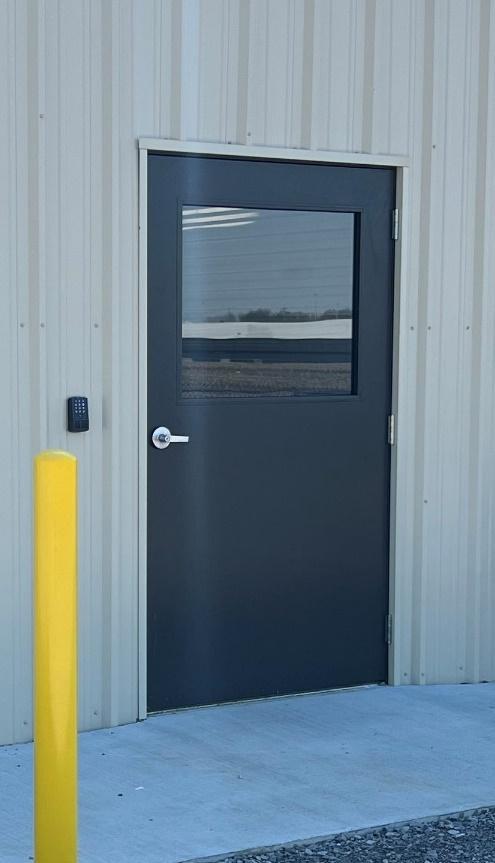

Walk Doors

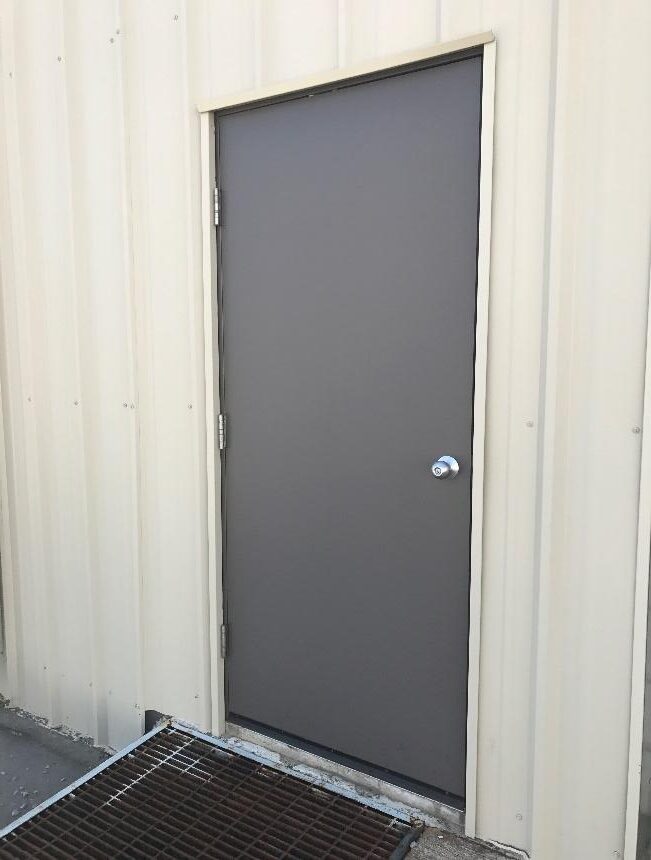

Searcy Building Systems offers insulated and non-insulated steel walk doors in 3’x7′ (3070/single leaf), 4’x7′ (4070/single leaf), and 6’x7′ (6070/double leaf). Each “knock down” door package requires assembly and includes weatherstrip, trim kit, leaf, frame, hinges, and threshold. Also available with a half glass or narrow glass cut out.

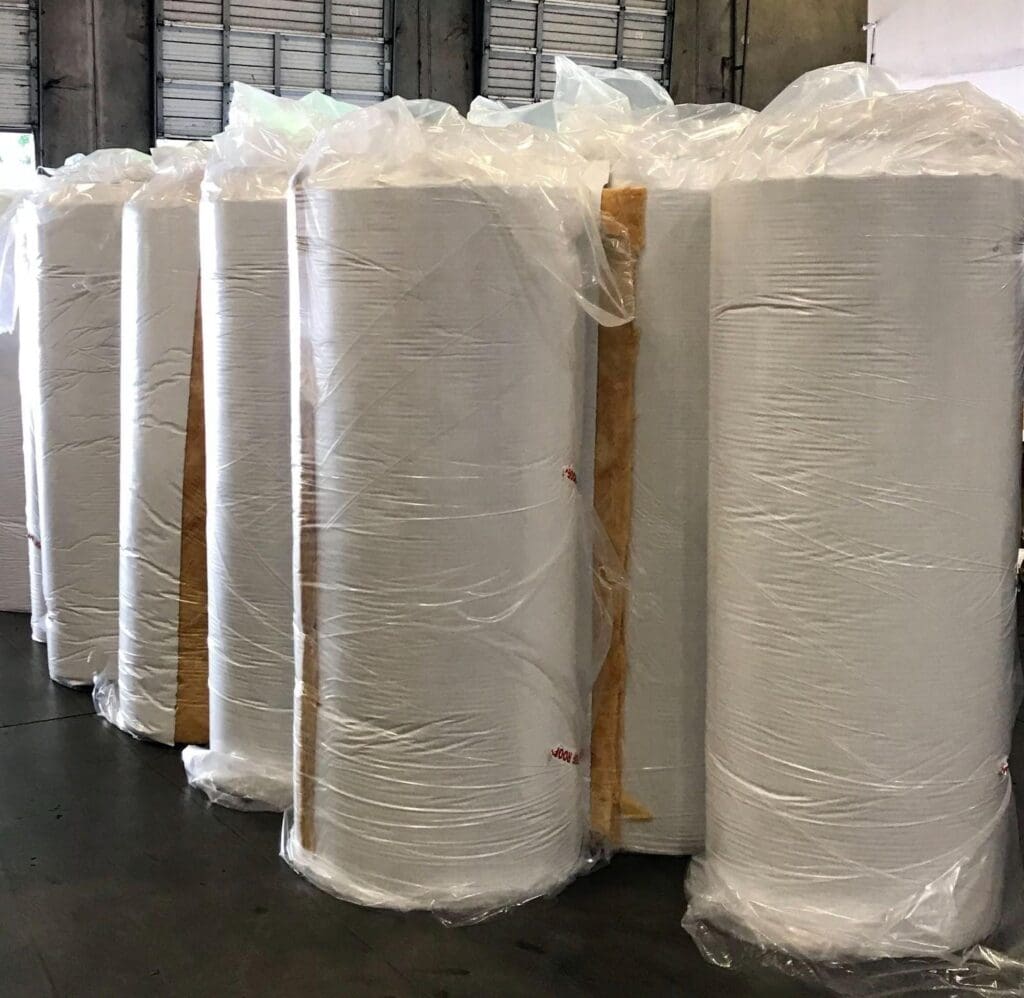

Insulation

Searcy Building Systems can provide an insulation kit for your building – 3” (R10), 4” (R13), 6” (R19) and higher r-value systems like Simple Saver or Energy craft. Unless the walls of your building are open, at minimum it is important to install a moisture barrier in the roof of your building to combat condensation. Our standard facing is vinyl reinforced to stand up to normal wear and tear, but we also offer specialty facings on request.

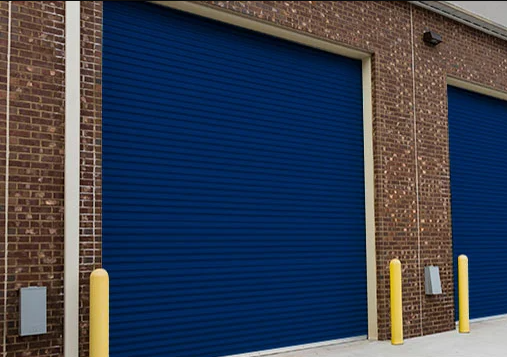

Roll-up Doors

SBS can provide you with the roll-up doors for your project. We supply Janus International doors which are the top of the line, highly respected door manufacturer. While we are happy to assist you with procuring your roll-up doors, we do recommend that you buy them locally so that you have a relationship with the individuals who can service your doors throughout their lifetime.
